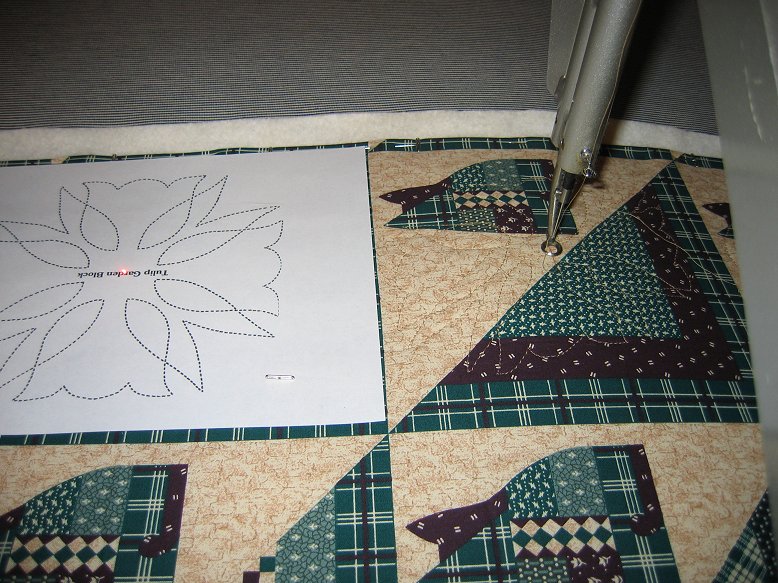

waterlilygardening Posted January 18, 2007 Report Share Posted January 18, 2007 Complete newbie to the laser light use! I got a laser light & trying to use it on the front of my ULT XX. I lined up the design I wanted stitched, pinned it to the quilt to the side, followed the design, & ... the design stitched out is distorted. I'm guessing because the fabric where the design was pinned down was moving up & down because of the machine moving the fabric up/down as I stitched beside the pattern. I've never seen anyone use a laser from the front, so if anyone could please let me know how to do this I'd greatly appreciate it. Thanks. Link to comment Share on other sites More sharing options...
ffq-lar Posted January 18, 2007 Report Share Posted January 18, 2007 Hi Kat-- In order to use the laser from the front, the design can be stabilized by taping it to a board that spans the rollers. That will solve the vibration/distortion problem. You can purchase a wooden table especially made to fit your set-up, or make one yourself. I use a masonite board with small blocks attached at the ends of the underside and it is very stable. Good luck and happy stitching! Linda Rech Olympia Wa Link to comment Share on other sites More sharing options...
sjdanley Posted January 18, 2007 Report Share Posted January 18, 2007 To use the laser you must use a solid surface. My hubby took 2 pieces of 1/4 x 1 aluminium strap and bent it at both ends to fit over the bars. We then took a piece of plexiglass and attached it to the strap with double sided sticky tape at about a 15 " span. The 'table' works great and I can tape my pattern so it won't move. Link to comment Share on other sites More sharing options...
waterlilygardening Posted January 18, 2007 Author Report Share Posted January 18, 2007 Thank you for the ideas. If you get a chance, pictures would be very helpful. I could set a board on the back roller & then block it up to the right height for the front roller. Thanks! Link to comment Share on other sites More sharing options...
ramona-quilter Posted January 18, 2007 Report Share Posted January 18, 2007 Kat, I have a PatternPort which holds a pattern on the front of the machine for front laser work. It just rides the 2 rollers. I have not used it yet so cannot attest to its value. But my friend has a similar tool that her DH made out of 2 curtain rods (u-shaped) and a plastic tray. Sams principle. I got mine at: http://www.patternman.com Here is what it looks like: Link to comment Share on other sites More sharing options...
Katydids Posted January 18, 2007 Report Share Posted January 18, 2007 Kat, Here is an inexpensive alternative to the pattern port that Linda posted. I used cheap curtain rods and a piece of plexiglass taped to the rods. It is not as good looking, but it works! Patty Link to comment Share on other sites More sharing options...
TishMarshall Posted January 18, 2007 Report Share Posted January 18, 2007 Thanks for sharing. I think I'll have to make one............ Tish Link to comment Share on other sites More sharing options...
waterlilygardening Posted January 18, 2007 Author Report Share Posted January 18, 2007 Thank you! Those are great. I tried a temp setup this morning & the designs still warped. I must be moving the machine wrong--pressing down too hard or something. This is where I need a video of myself stitching to see what I'm doing wrong. Link to comment Share on other sites More sharing options...
quiltingtina Posted January 18, 2007 Report Share Posted January 18, 2007 I love the curtain rod idea. I don't plan on doing much laser work, but it looks like a good way to handle my keyboard and mouse for CQ. Link to comment Share on other sites More sharing options...
